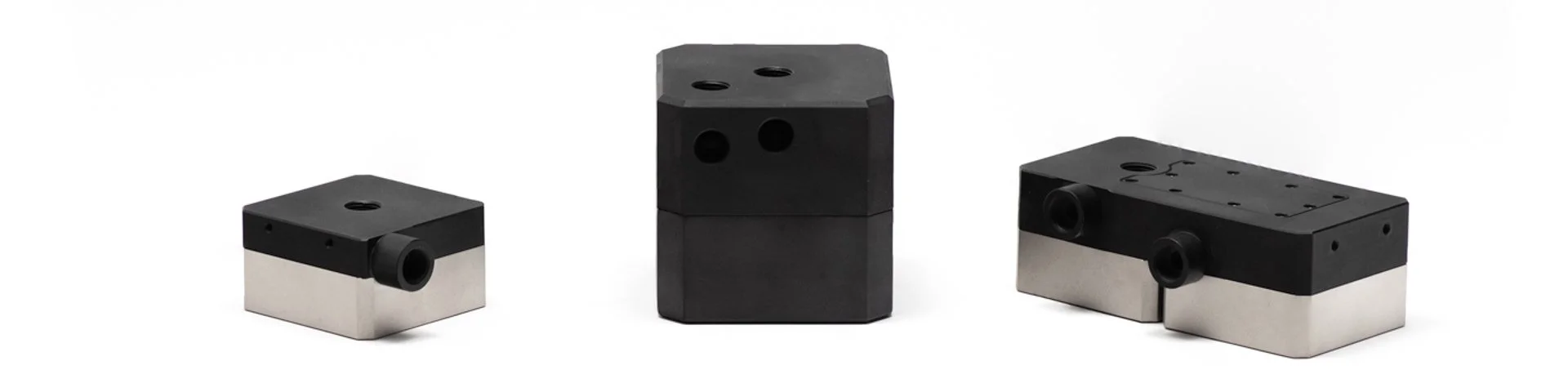

LUDEN PUMPS

The patented Luden pumps are high reliability industrial designs featuring PWM control and a completely plug and play installation.

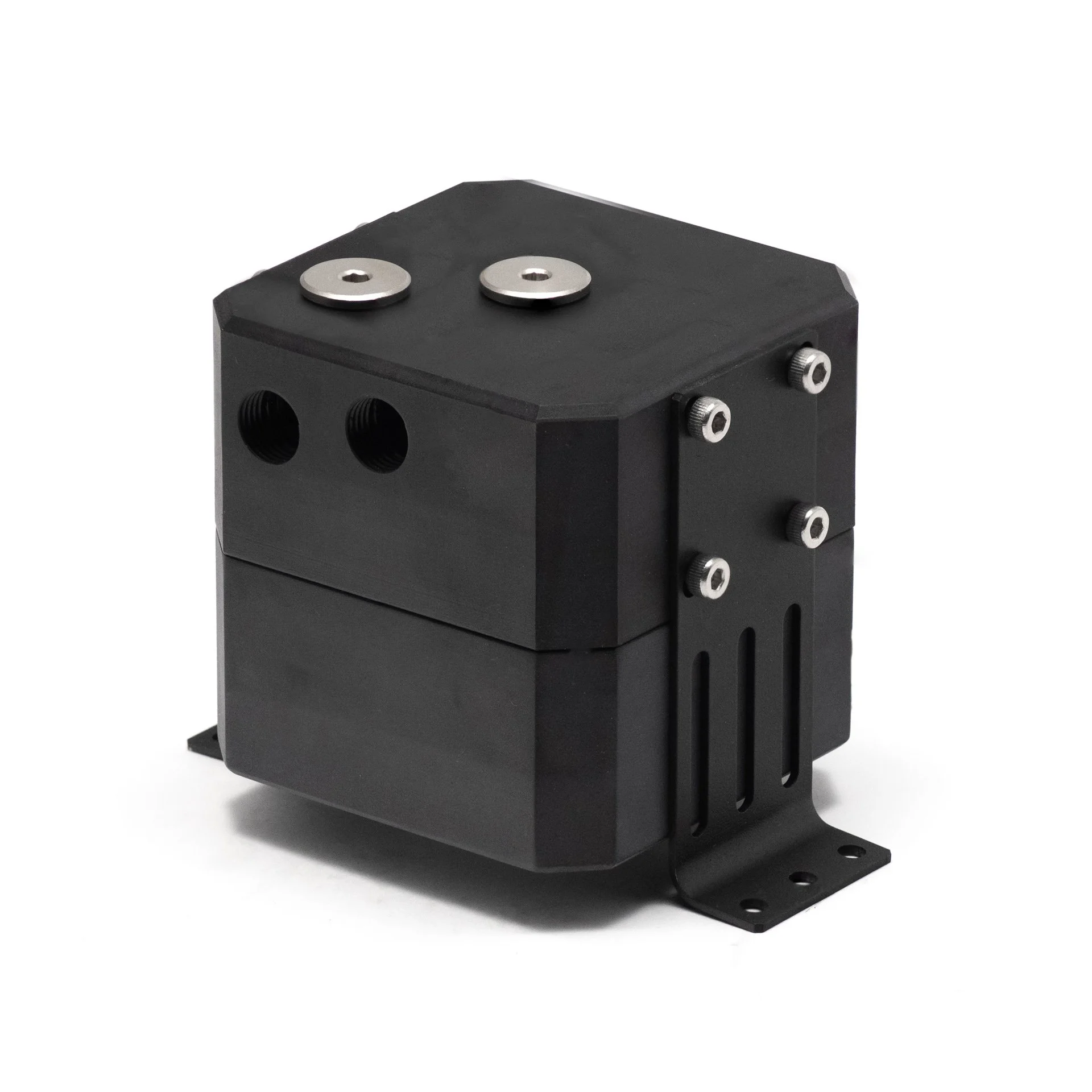

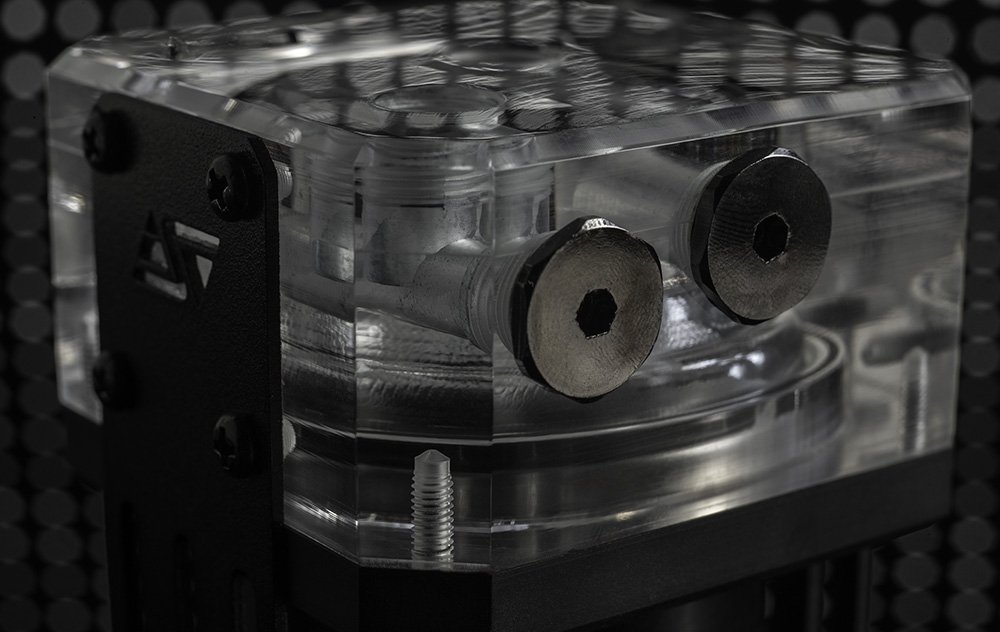

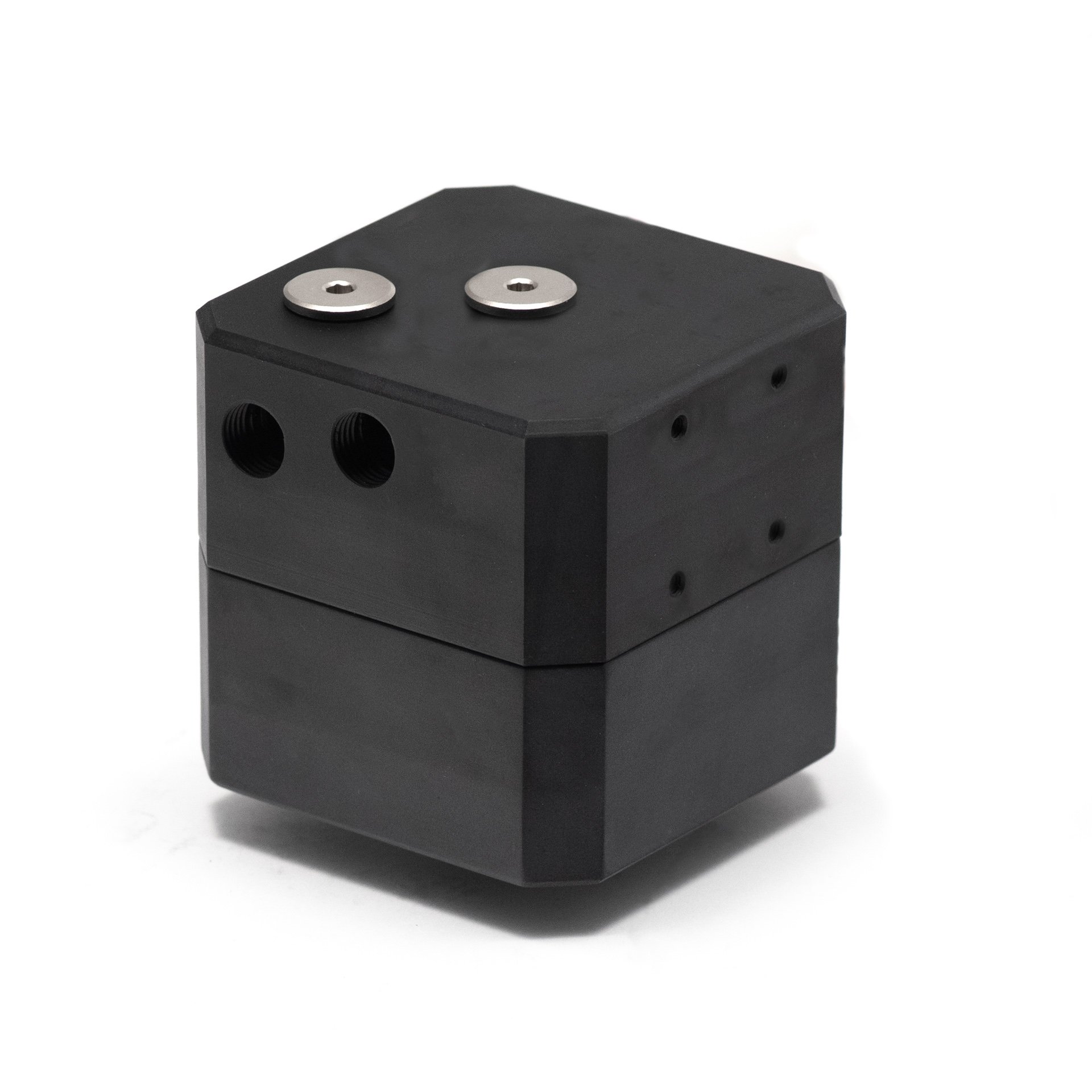

MCP655 D5 SERIES

The pumps are completely plug-and-play, and connect directly to the computer power-supply with a standard 4 pin power connectors. Depending on the model, the pump speed can be varied using the Motherboard PWM control. The MCP655 series compact design, quiet, reliable and powerful motor make them ideally suited for heavy duty liquid cooling applications where quiet operations are essential.

The MCP655 Series pumps are high reliability, high pressure industrial pumps, featuring a 50,000 hour MTBF (5 year lifetime). Such reliability is afforded by the unique design of the motor, which contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

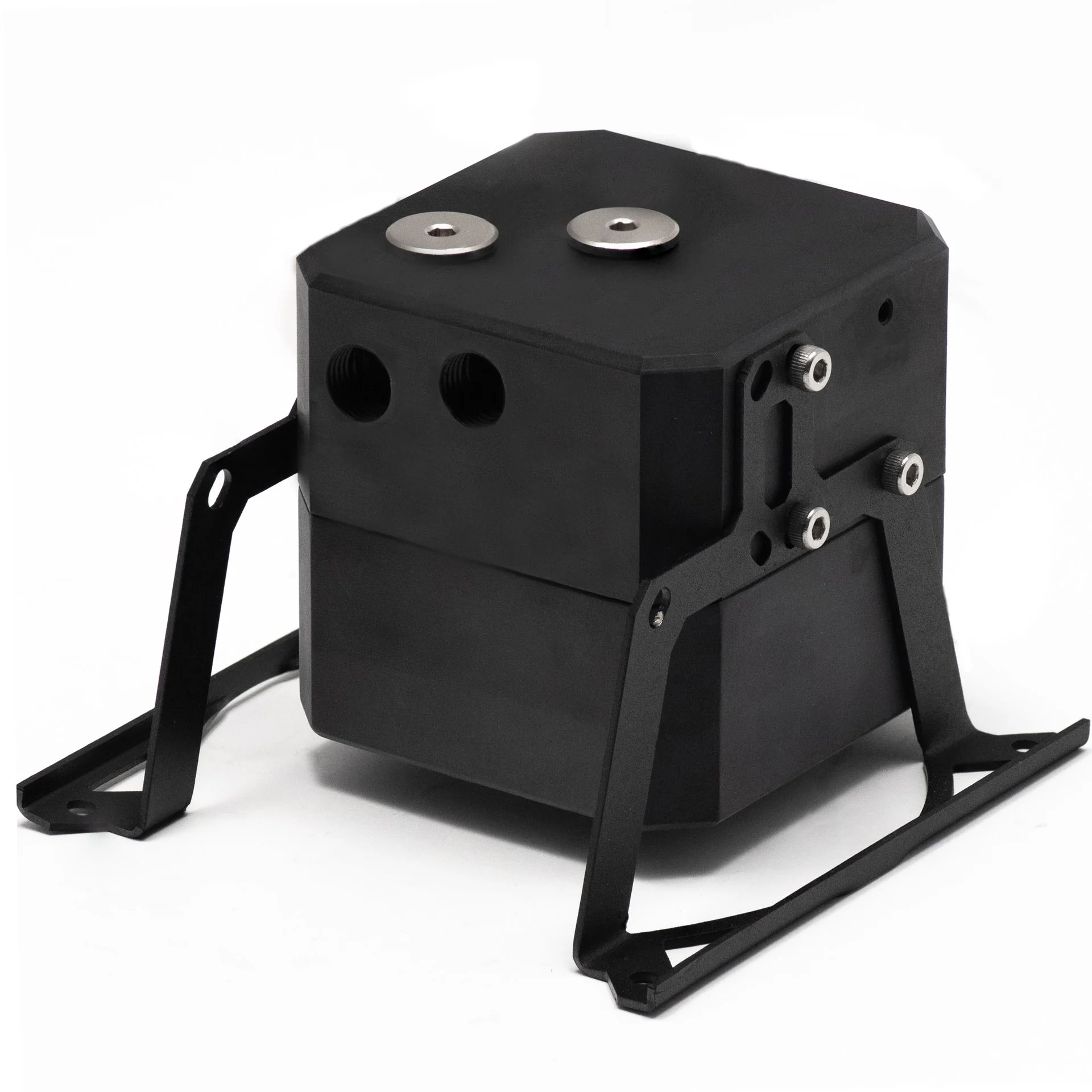

The MCP655-PWM-ACRYLIC and PCP655-PWM ACETAL mounting brackets allow installation of the pump in either vertical, or horizontal orientation.

  • Four G1/4 threaded ports are present on the MCP655-PWM-ACRYLIC and PCP655-PWM ACETAL models, (fittings are not included):  users can configure the flow path in 3 possible settings: 1/Inlet on the pump face, outlet on the side face, or 2/ Inlet and outlet on the pump face, or 3/ Inlet and outlet on the side face.

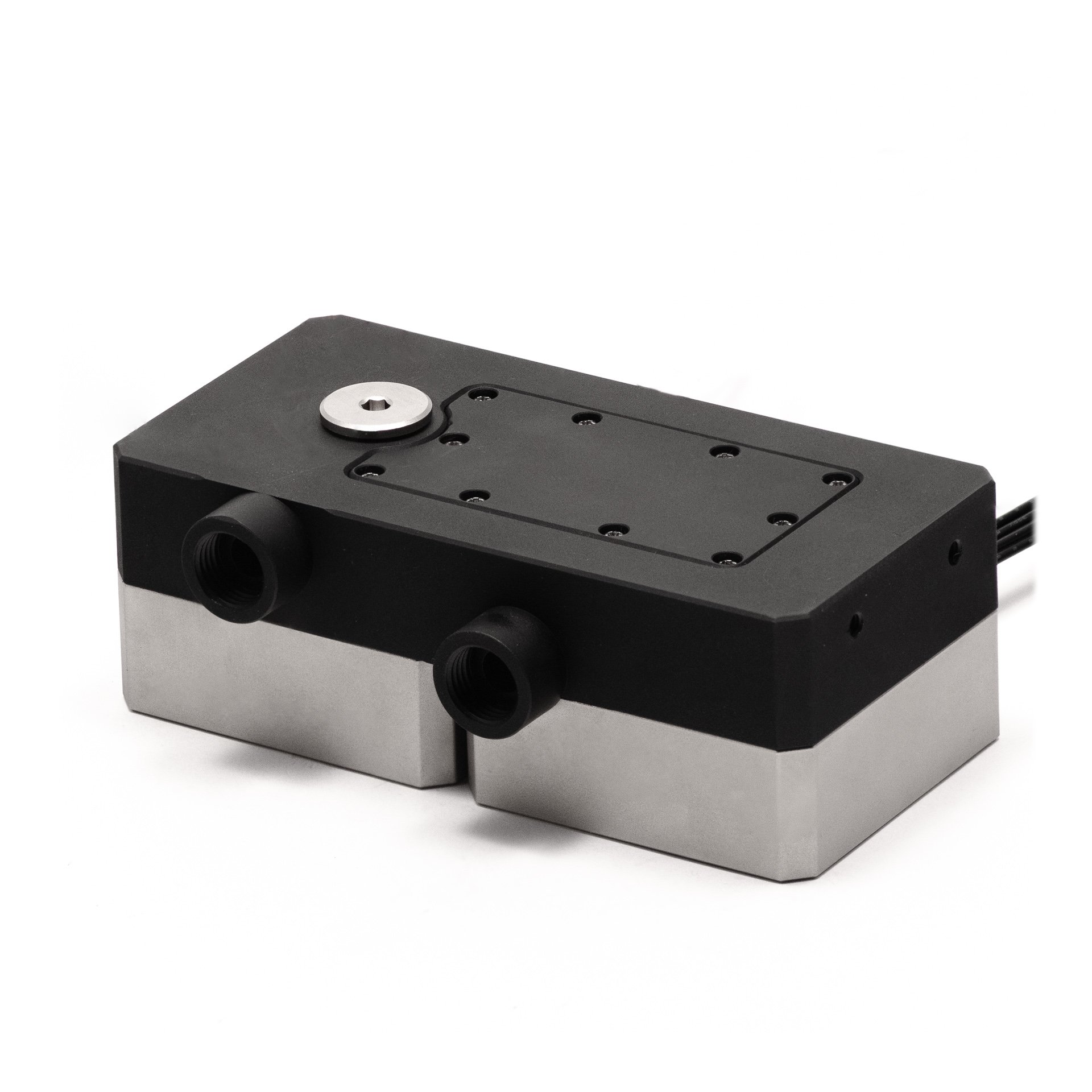

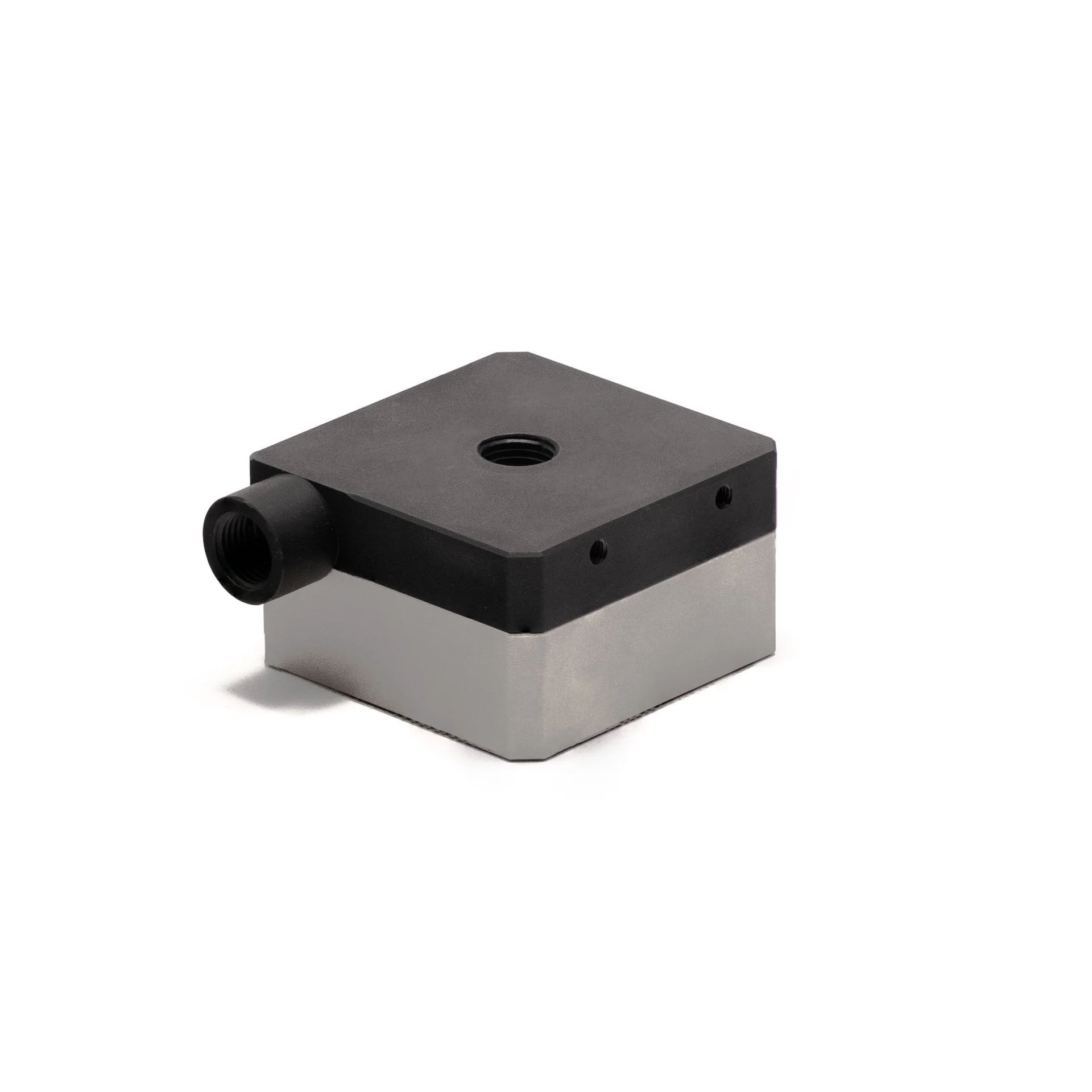

MCP35X DDC SERIES

The MCP35X pump is a substantial evolution from the long established MCP35X. It differentiates itself from its sibling by two primary features:

  • The pump housing:

    • has been redesigned to provide considerably enhanced hydraulic performance;

    • is compatible with multiple tubing options thanks to the adoption of the G1/4 port standard;

    • can host an optional “built-in” reservoir;

    • is available in two colors; classic black or fashionable white

    • is also sold separately, and remains compatible with all MCP3XX series pumps

  • The motor:

    • is now PWM compatible, allowing variable speed control thru the motherboard from 1300 to 4500 rpm.

Luden

Pump P/N Number MSRP
D5
ZTLC-00158 Single $159.95
DDC
ZTLC-00155 Single $109.95
ZTLC-00153 Dual $199.95
